Overview
Logging mode delivers high-resolution data recording directly on your device, capturing measurements at a 1 Hz frequency for advanced research applications. Unlike measuring mode, logging mode is managed through Calera® software.
Key Features
- High-resolution data capture at 1 Hz sampling rate
- Simultaneous management of multiple devices
- Reliable direct control via Bluetooth dongle for PC/Mac
- Accelerated data downloads with dedicated software
- Optimized for research workflows and professional environments
⚠️ Haven’t downloaded the software or created an account yet? Get started here
Setting Up the Measurement
- Ensure the BLE dongle is connected to your PC and the devices are fully charged.

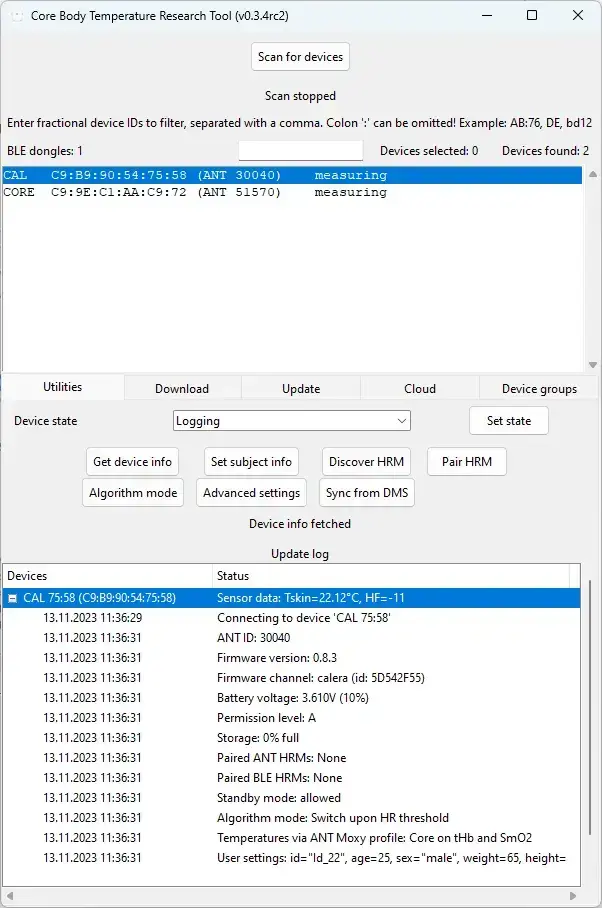

- Launch the Research Tool software. (Picture 1)
- Shake the devices until the green light flashes.
- Scan for available devices and select your preferred device.
- Verify the device is running the latest firmware and the correct algorithm.

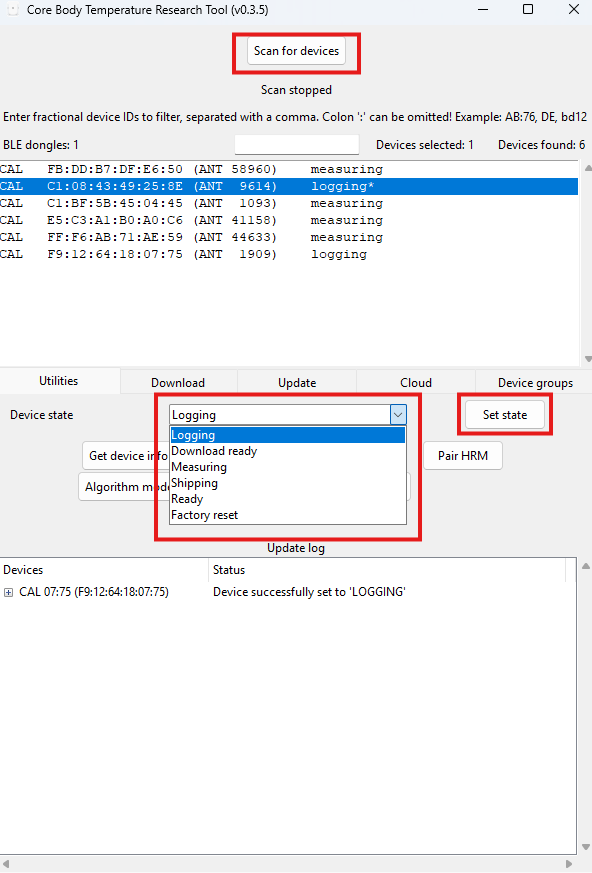

- Switch the device to "logging" mode (Picture 2)
- Selecting your device
- Select "logging"
- Click on "Set State"
- Scan and verify the updated state
- Attach the device to the subject
- Allow 20 minutes for calibration to ensure accurate measurements.

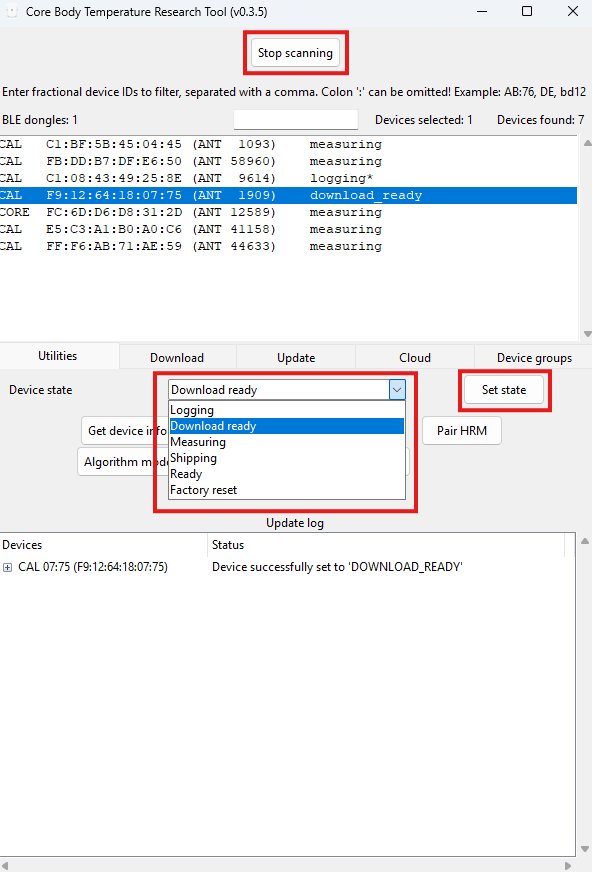

- After the measurement, switch the device to "Download Ready". (Picture 3)
- Selecting your device
- Select "Download Ready"
- Click on "Set State"
- Scan and verify the updated state
- Navigate to the "Download" tab to retrieve the data. (Picture 4)
- Once the download completes, the device will automatically revert to measuring mode.
⚠️ Important:
- Make sure the devices are set to the desired State before recording and downloading the data.
- Measurements are logged at 1 second intervals and accelerometer data is included.
