What's in the Box

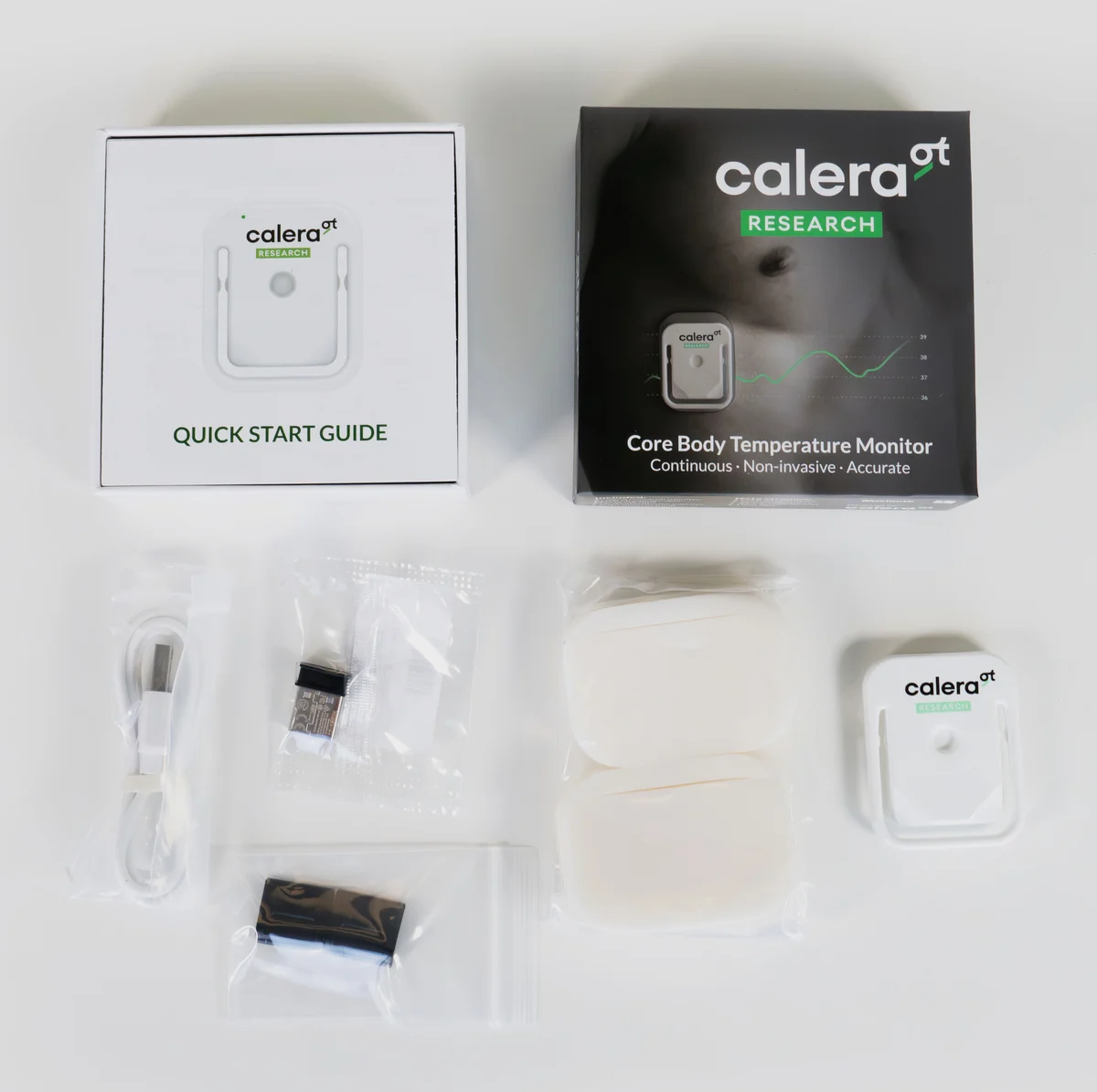

Your Calera package includes everything needed to start measuring core body temperature (Picture 1) :
- Calera Device
- 6x white liner patches
- Securing clips
- Magnetic USB Charging Cable
- Bluetooth Dongle - For PC/Mac connectivity
Device Components

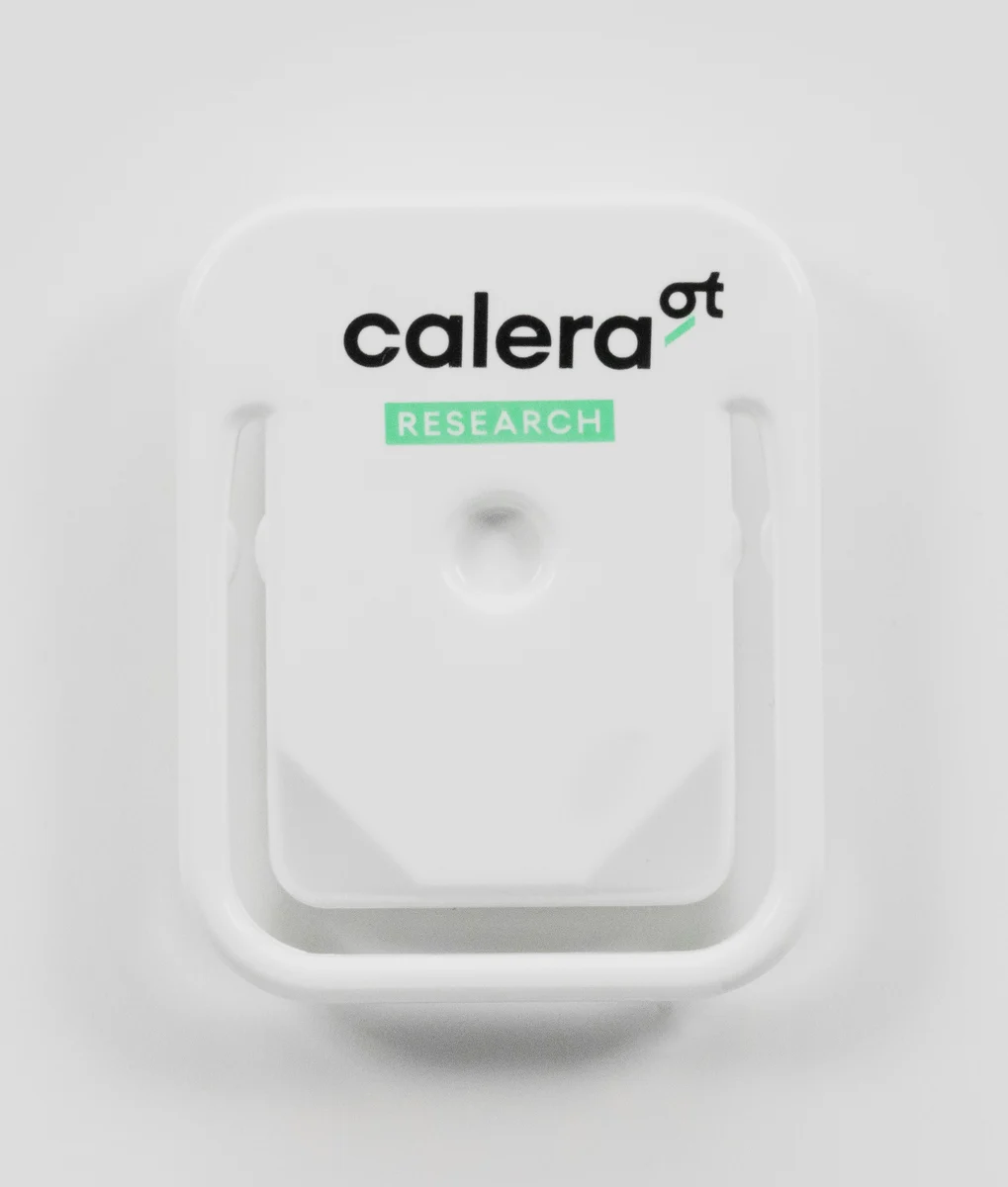

LED Status Indicator (Picture 2)
Location: top left corner
When shaking the device firmly for 2 seconds
- Flashing green: Device is on and connected
- No Light: Device off or battery depleted

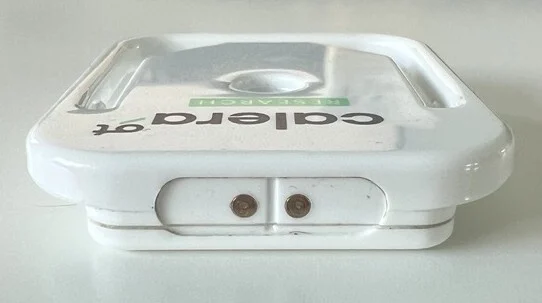

Charging Contacts (Picture 3)
Location: Top of Device
- Magnetic connection for secure charging
- Waterproof design when not charging
- 2-hour charge time for full battery
⚠️ To reset the device, brush the charging cable over the sensor area.
This action will stop all active logging mode measurements. Use caution when charging.

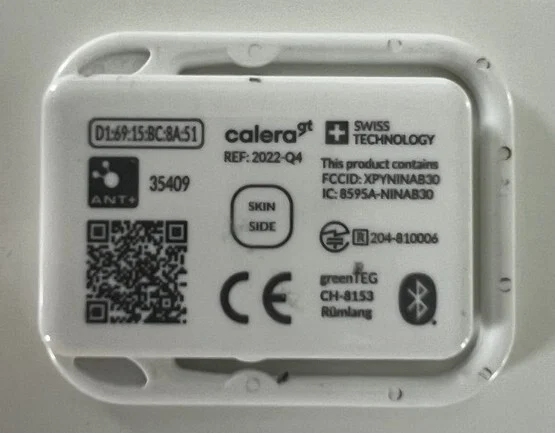

Sensor Area (Picture 4)
Location: Bottom surface (skin contact)
- Unique device ID - Six-segment identifier displayed as X#:X#:X#:X#:X#:X#
- Heat flux sensor - Measures thermal energy transfer
Temperature sensor - Measures skin temperature
.
